| Electromagnetic roasting machine adopts supersonic electricity heating to heat the roller directly. It's intelligent, low consumption and environment protection. The machine is mainly used to dry and heat chemical raw materials.
|
Technical parameters:
Model | Productivity | Power Range | Moto Power | Voltage | Overall Size(mm) | Roller Size(mm) |
DCCZ 7-10 | 50-250kg/H | 4-32kw | 1.1kw | 380v | 1650×950×1520 | 700×1000 |
DCCZ 7-15 | 100-350kg/H | 6-48kw | 1.5kw | 380v | 2000×950×1520 | 700×1500 |
DCCZ 9-16 | 150-300kg/H | 7-56kw | 3kw | 380v | 2000×1190×1650 | 900×1600 |
DCCZ 12-16 | 150-450kg/H | 7.5-60kw | 4kw | 380v | 2170×1540×2235 | 1200×1600 |

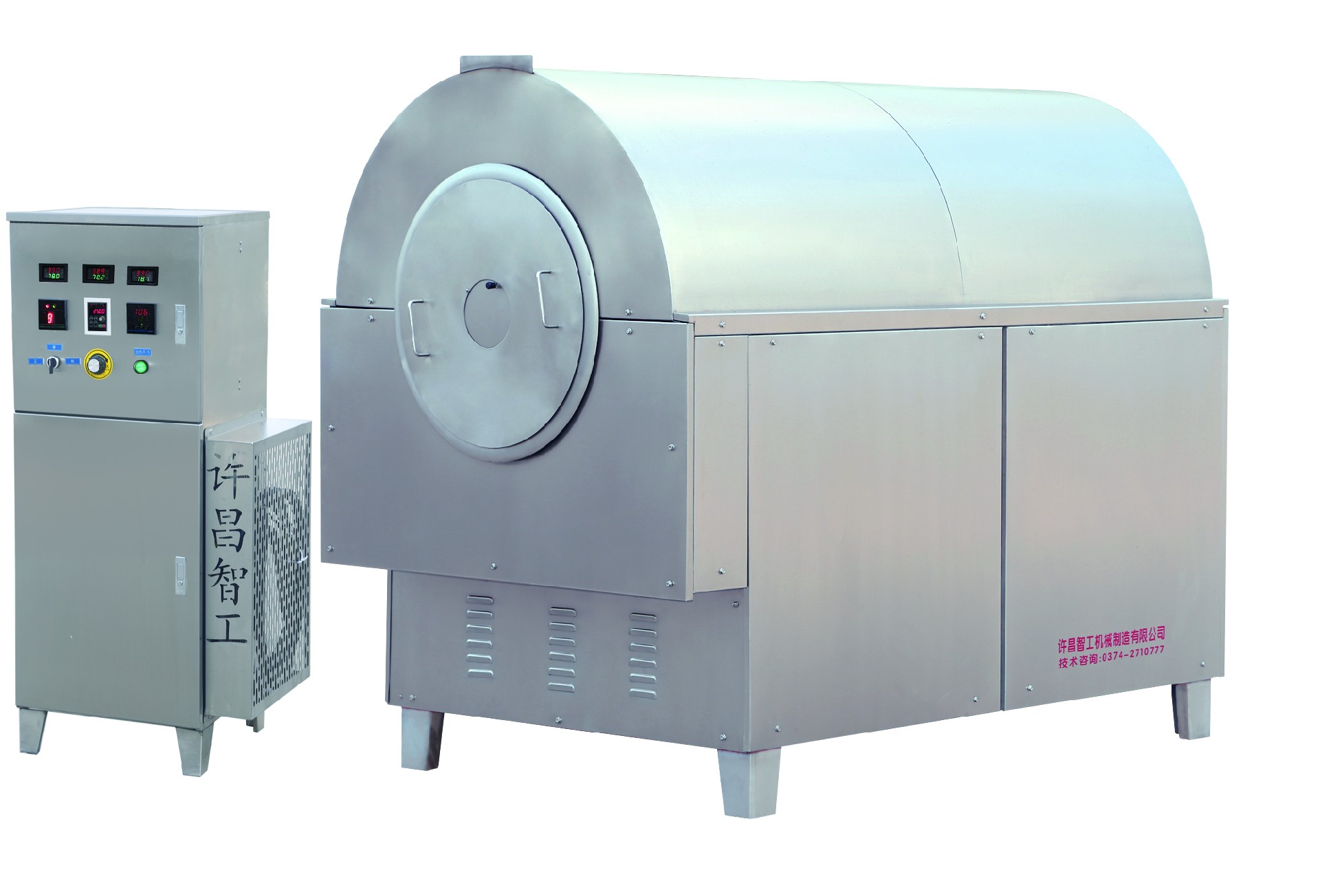

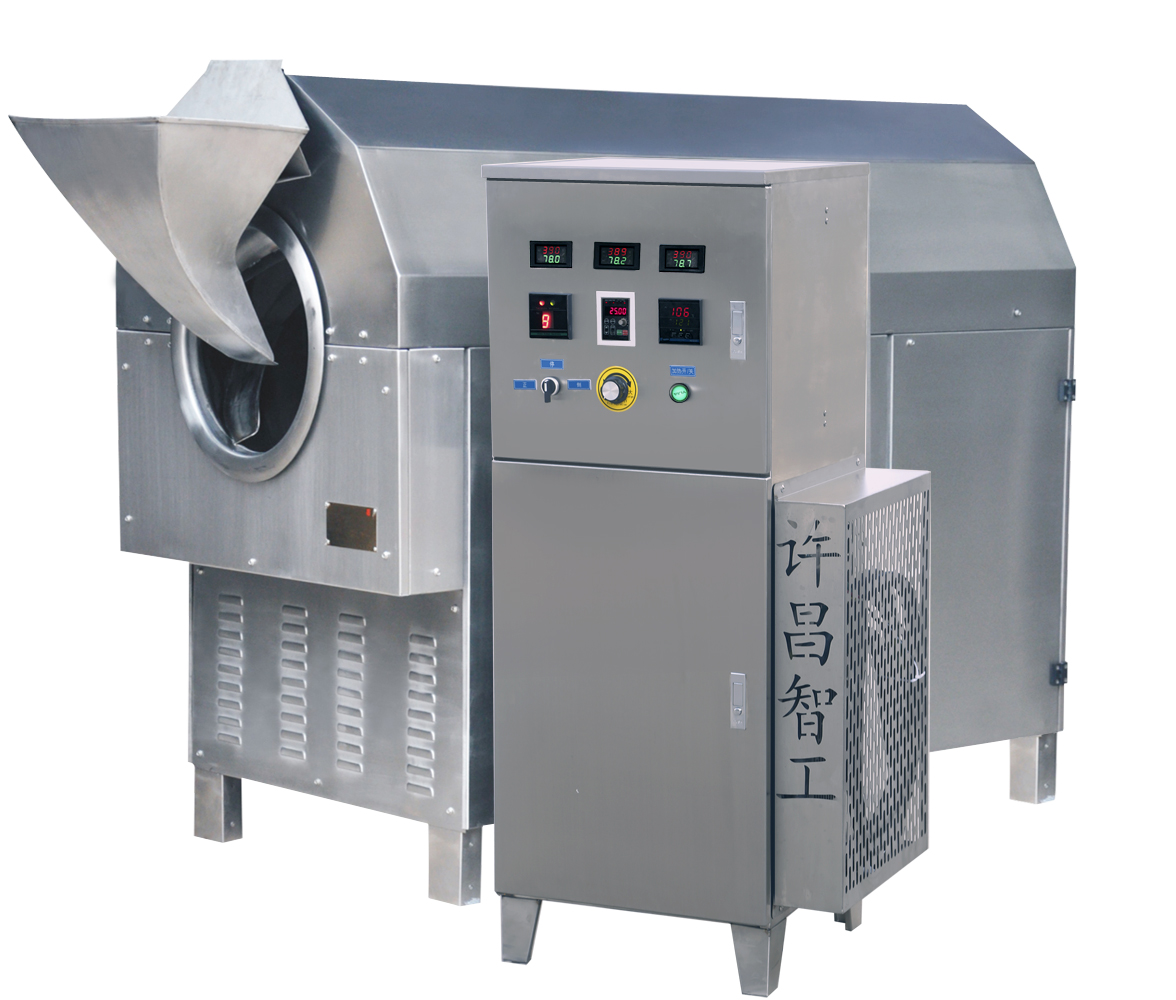

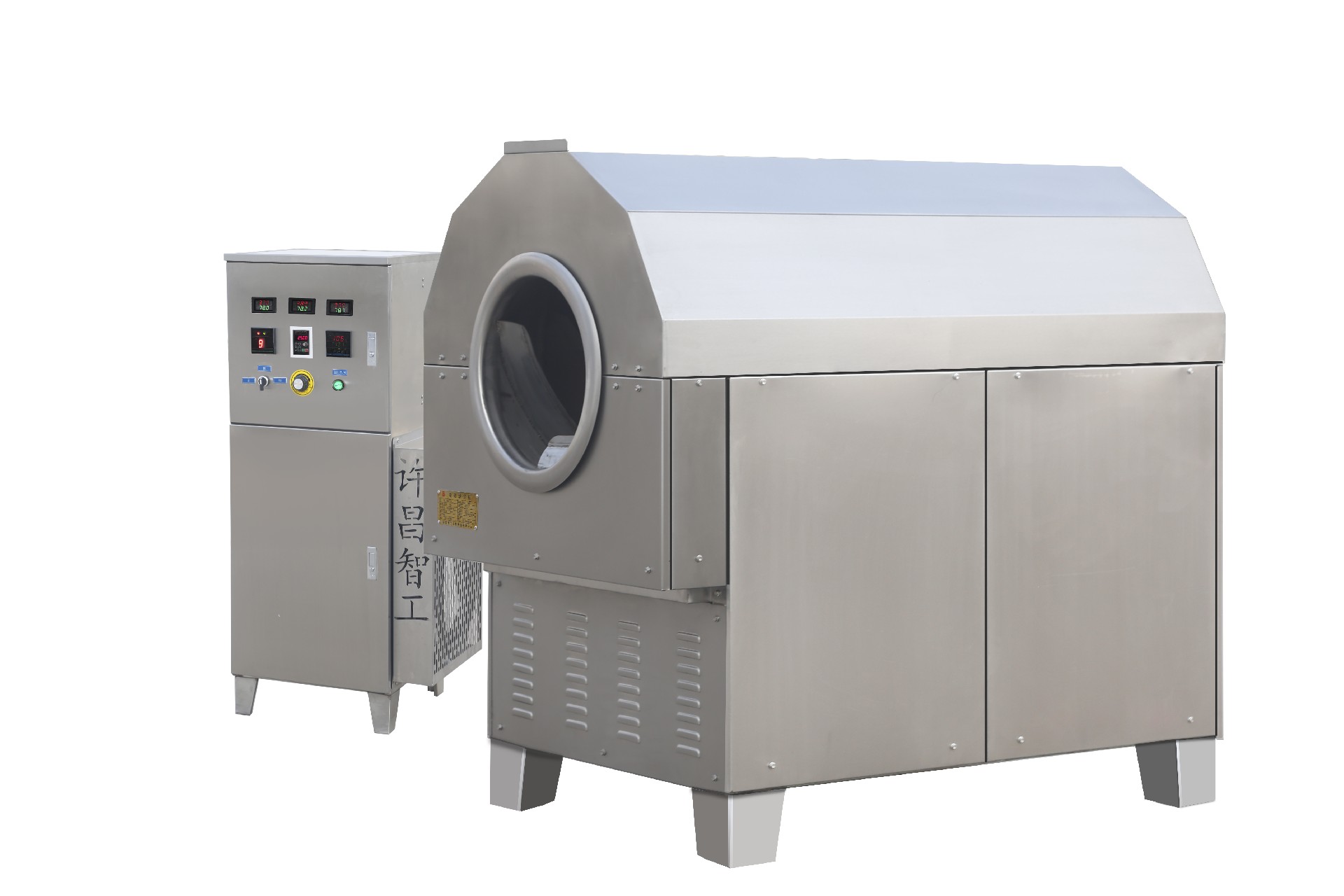

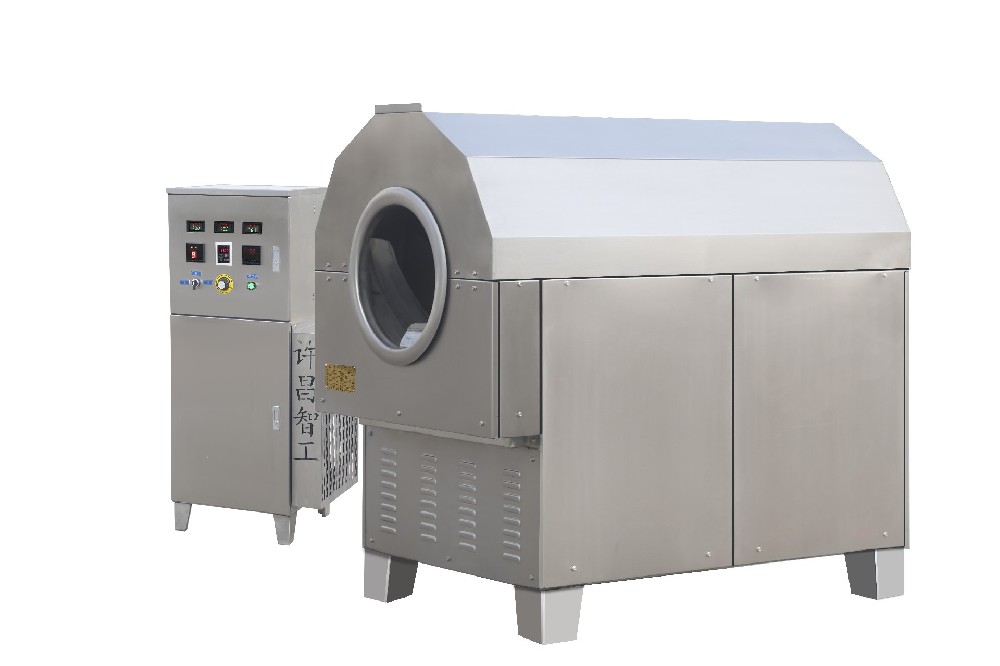

The detailed images:
|
|
|
The advantage of roasting machine:
1.Protect environment:electromagnetism transform into heat energy to process the materials, carbon-free
2.Save energy & low power consumption:process5kg sunflower seeds cost 0.6kwh, 5kg sesame seeds cost 0.55kwh
3.High temperature:Max.400 degree centigrade
4.Self-diagnosis function, can show the problem on the display
5.Long working life: 8years
6.Warranty term: 2years
7.Supply customized service
Application areas:
a. The leisure food industry: sunflower seeds, peanuts, cashew nuts, almonds, chestnuts and walnuts.
b. Oil extraction industry: rapeseed, soybean
c. Tea Processing: Deactivation of enzymes and drying.
d. Chemical industry: drying and heating chemical raw materials
e. Feed processing industry: raw material roasted
f. Grain processing industry: corn, sorghum, rice, barley, and wheat
g. Condiment: chili, pepper, anise and fennel
h. Pharmaceutical industry: Traditional Chinese medicine planing system
